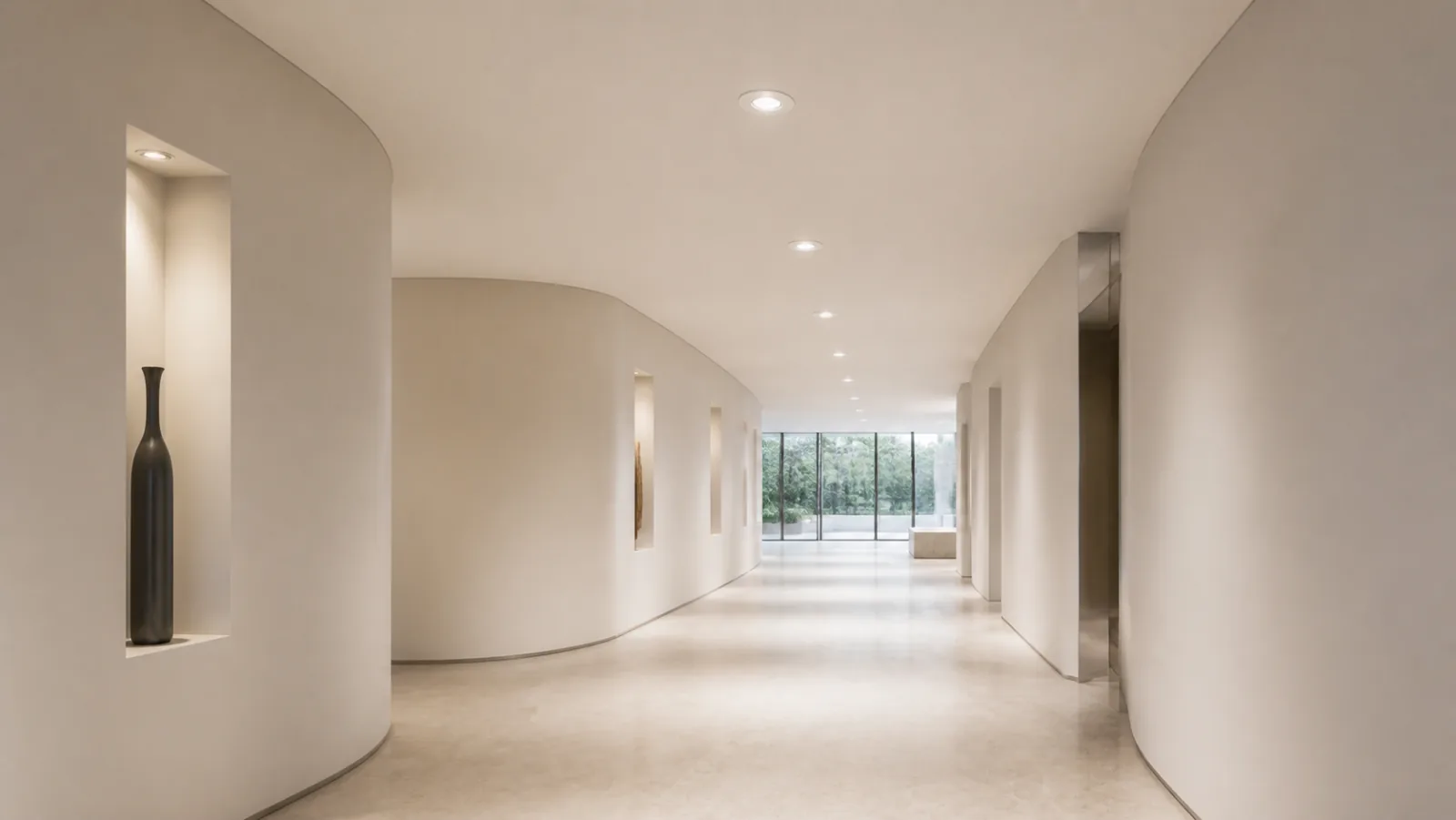

Recessed downlight. Barely visible. Fully there.
TRN-19-LD01DL-LFP-BT-3H

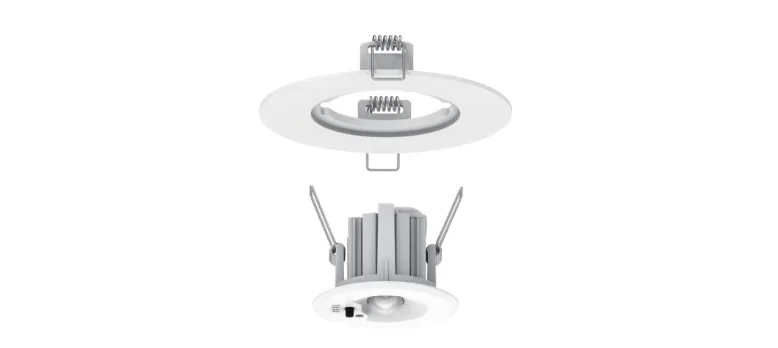

Compact emergency recessed luminaire for discreet integration into the ceiling. Interchangeable optics for escape routes and open areas, 500 lumens in emergency mode.
Technical data
| Luminous flux (emergency) | 500 lm |
|---|---|

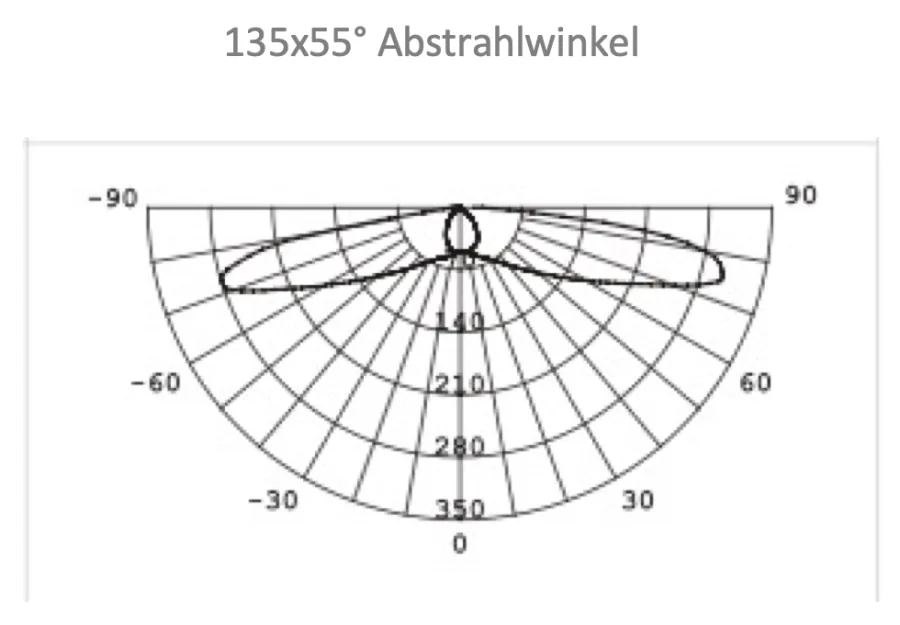

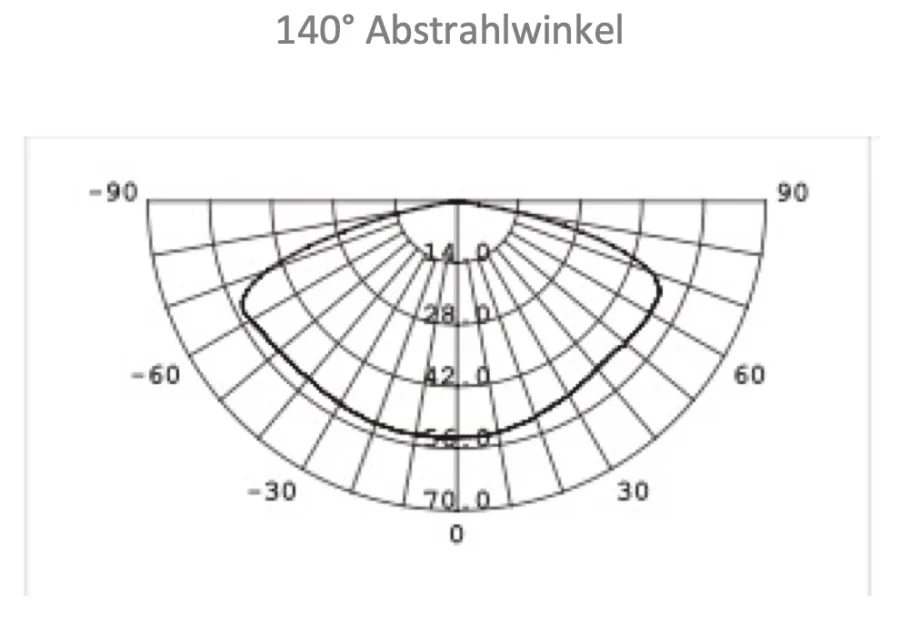

| Optics | 135 × 55° (escape route) or 140° (open area) |
| Emergency operation | up to 3 hours |
| Power / efficacy | 3 W · 167 lm/W |
| Colour temperature | 5.000 K |
| Dimensions (H × W × D) | 38 × 55 × 55 mm |
| Protection rating | IP20 |

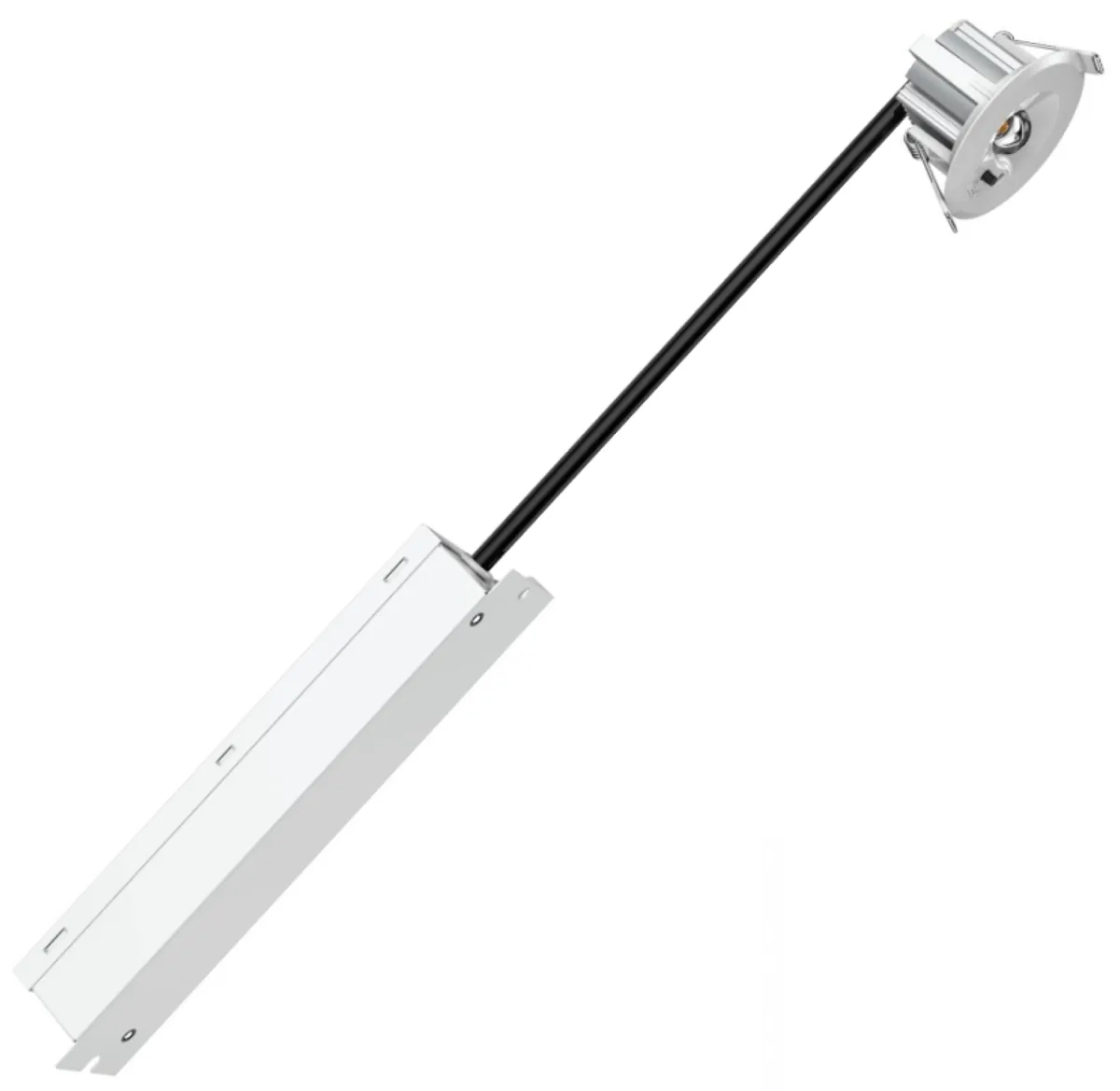

| Battery | LiFePO4, in a separate battery housing |
Images similar. Subject to technical changes.
